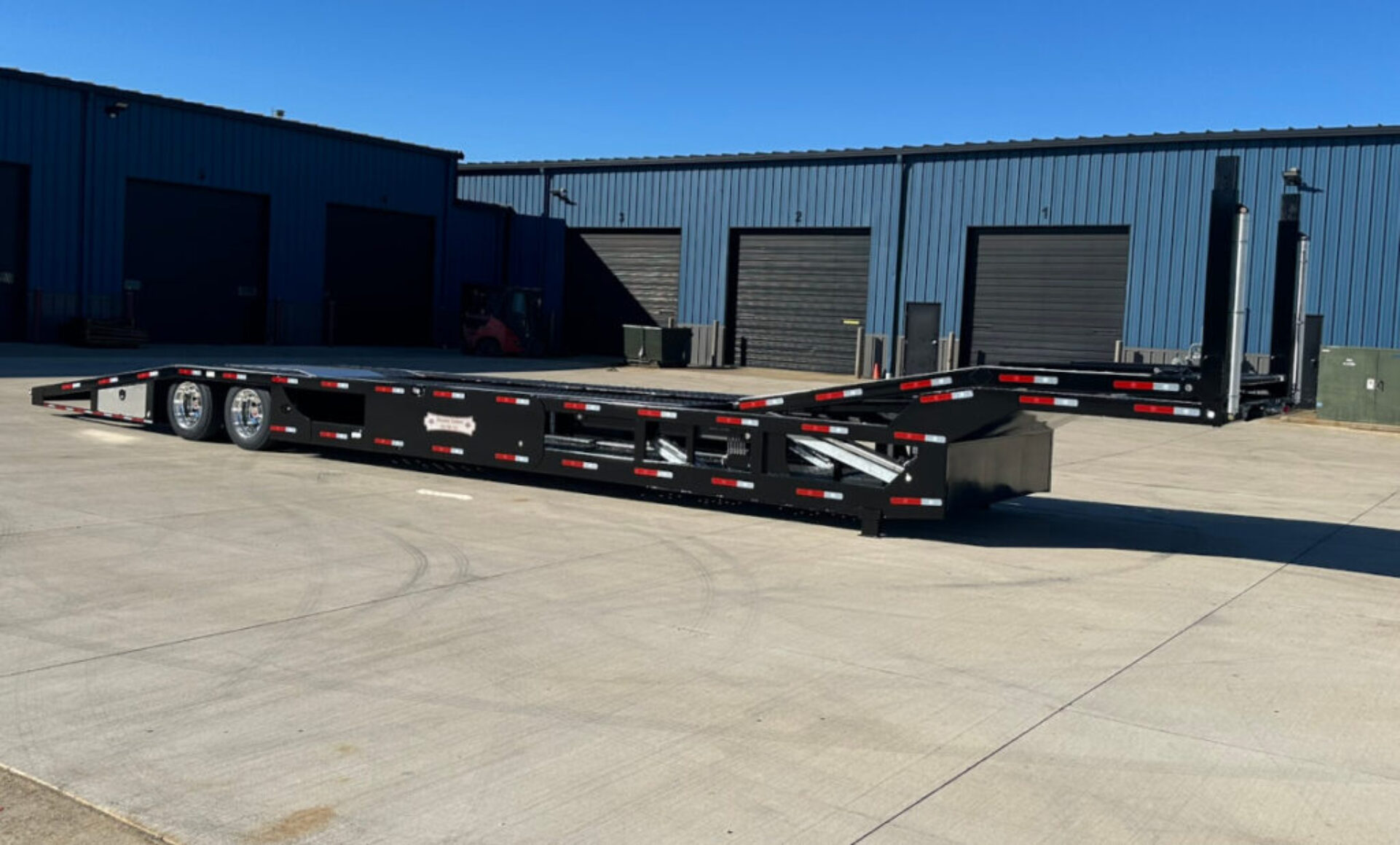

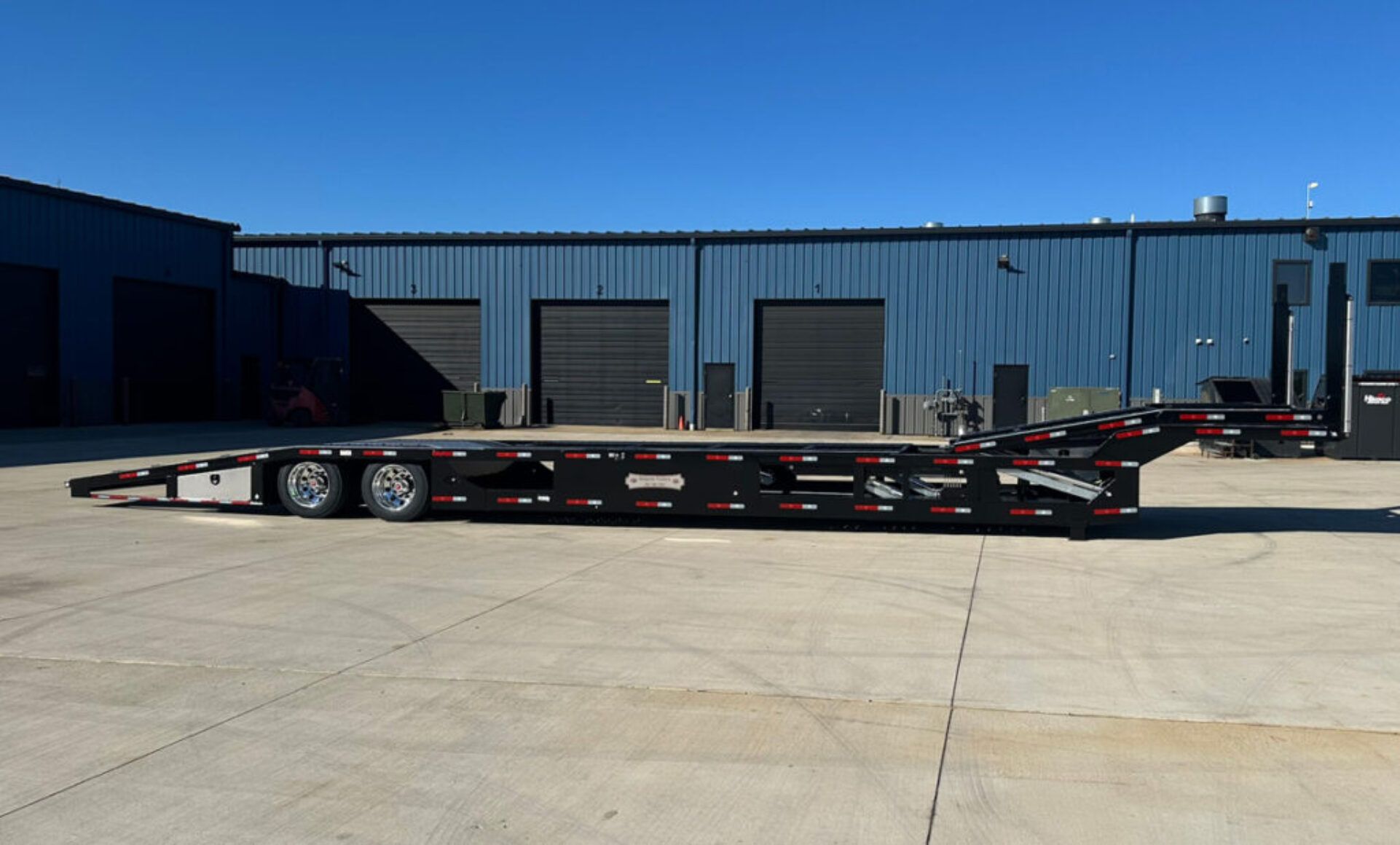

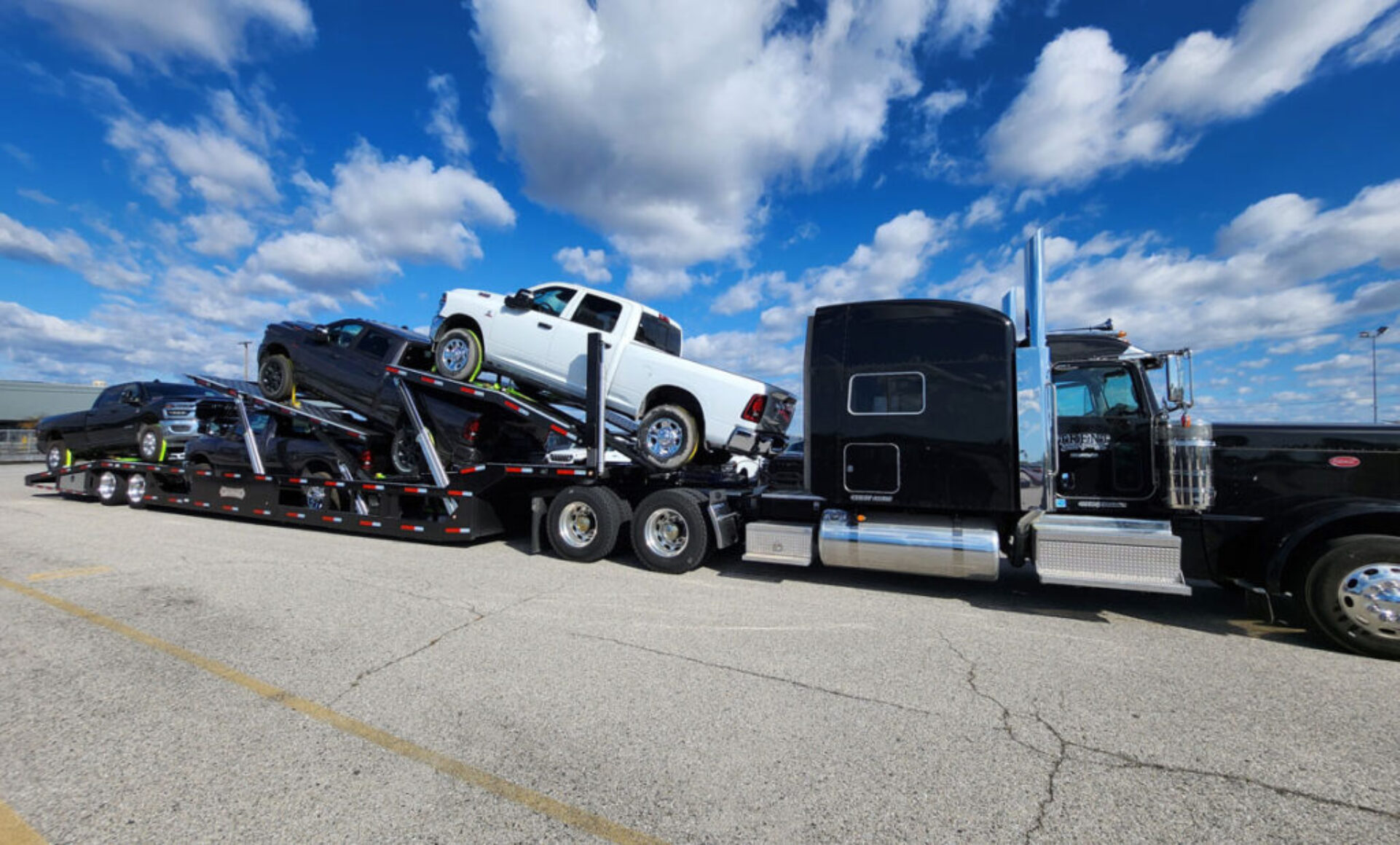

Model Name: CH53-WBAR5
Standard Features & Equipment:
- 53′ OAL X 102″ Wide
- 1/8″ Steel Pooched Decking
- 2-20K Air Ride Brake Drum Axles W/ABS
- 8-255/70R-22.5 Steel Dual Wheels – 16PLY
- Air Suspension Dump Valve
- Overextended Airbags
- Custom Jack Stands

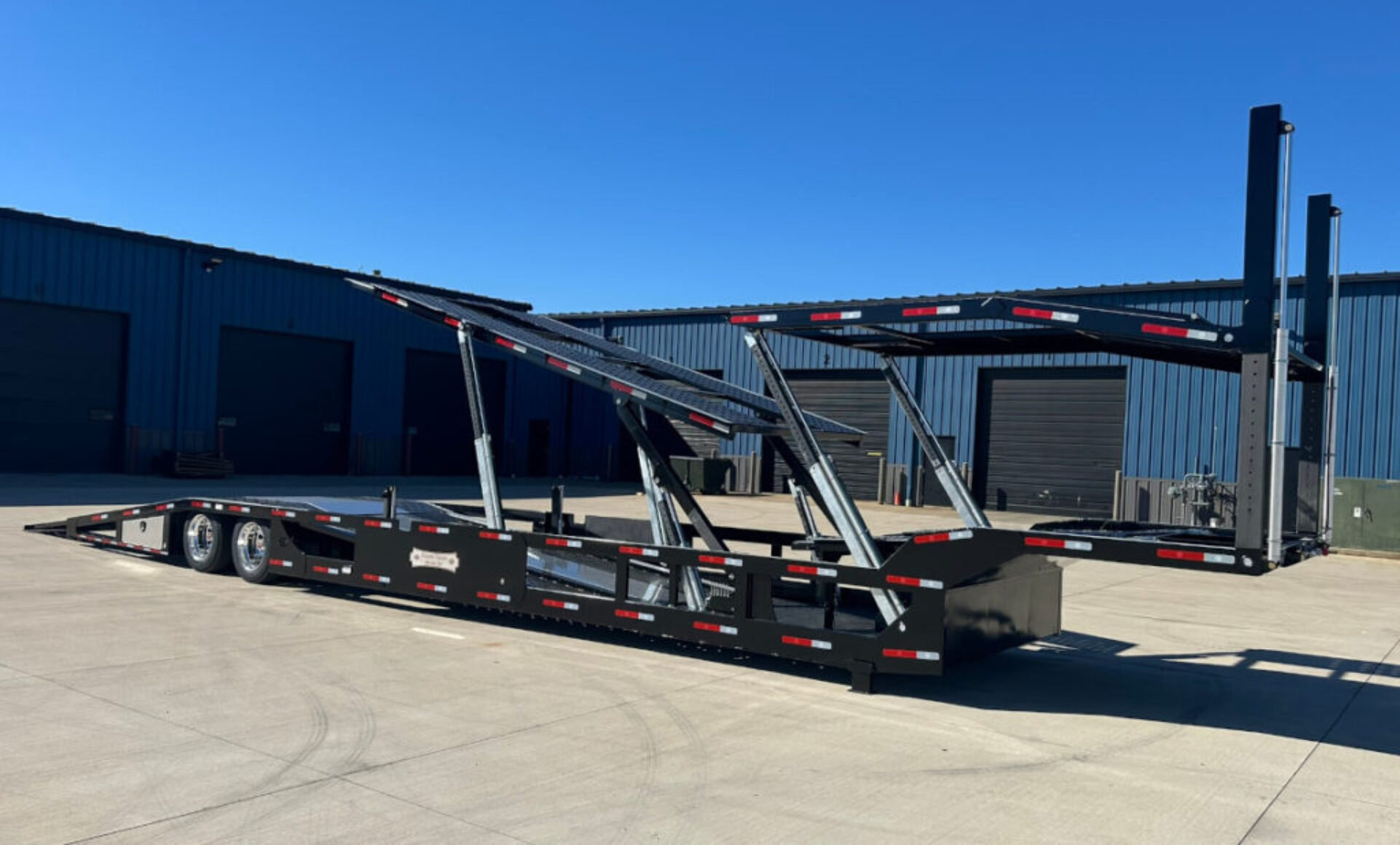

- POS 1&3 Hydraulic Lifts
- Hydraulic Belly Lift

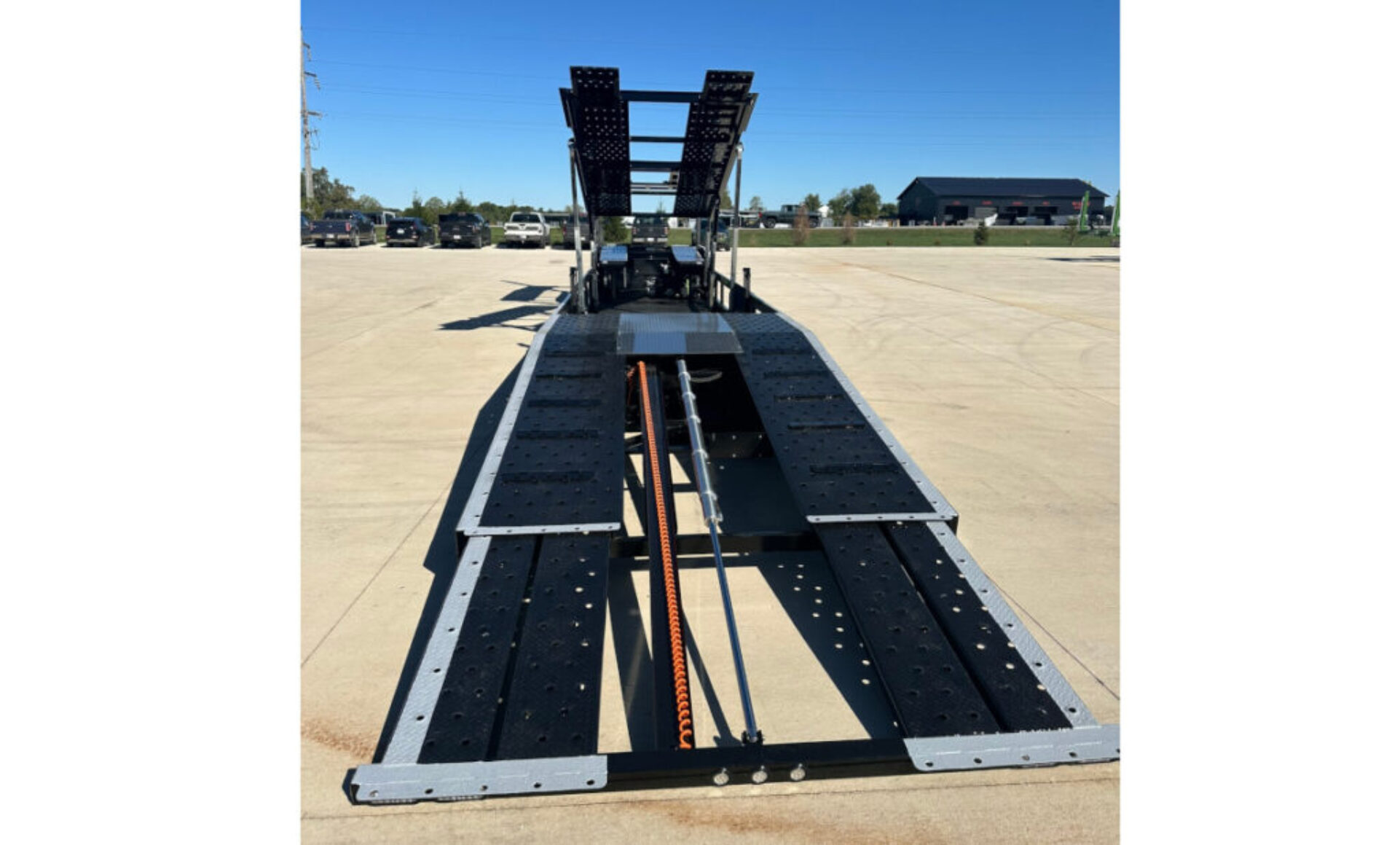

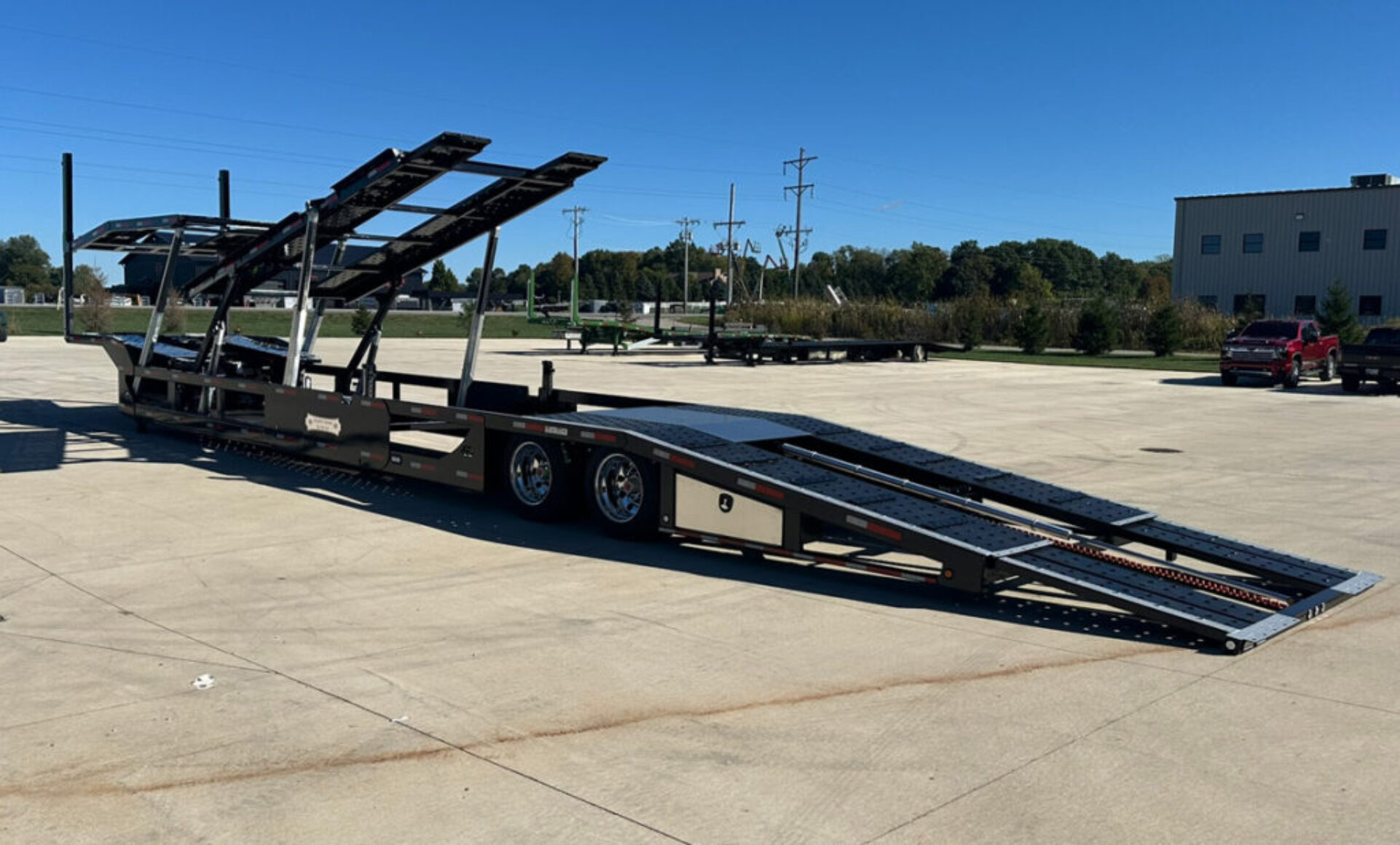

- Rear Hydraulic Shotgun Ramps
- 6 Spool Valve, Hydraulic Pump & Motor, Custom Hydraulic Tank
- Aluminum Cylinders
- Double Coat Paint & Primer – DTM Durethane Black
- Non-Slip Grip Paint on Trailer Edge
- Sealed Led Lighting
- 2-DC27-105 Batteries For Reserve Power
- DOT Inspection
Custom Options (Not all shown):
- Aluminum Dual Wheel Upgrade (per Wheel) (outer Only)
- Custom Paint
- 20K Disc Brake upgrade (Per Axle)
- Auto Air Inflation Kit
- 30″ Steel Front Flip out Upgrade-Lift Only
- Chain Tie Downs-Add 8 Chains, Ratchets, Center Ladder @ POS 1 & 3 Lifts
- Chain Tie Downs – Add 20 Chains, Ratchets, Center Ladder
- Non-Slip Grip Paint On Trailer Decking – Entire Trailer
- Truck Slot Package
- LED Load Lights (2)
- 9.5E Winch 12V W/Wired Remote
- Steel Flip Tiedowns on Dovetails (5 Sets)
- FET Tax on Trailer with GVWR Greater Than 26000LB

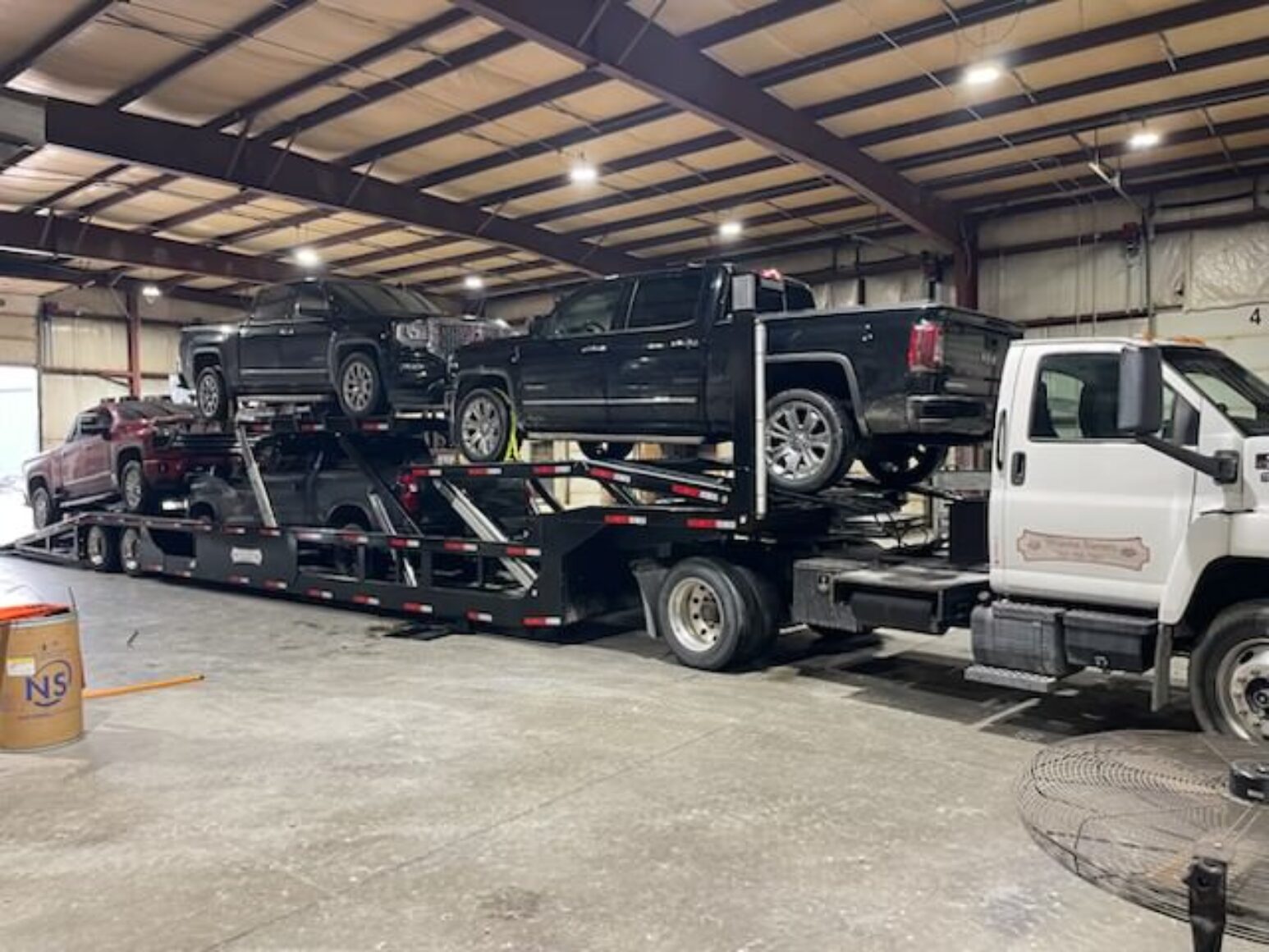

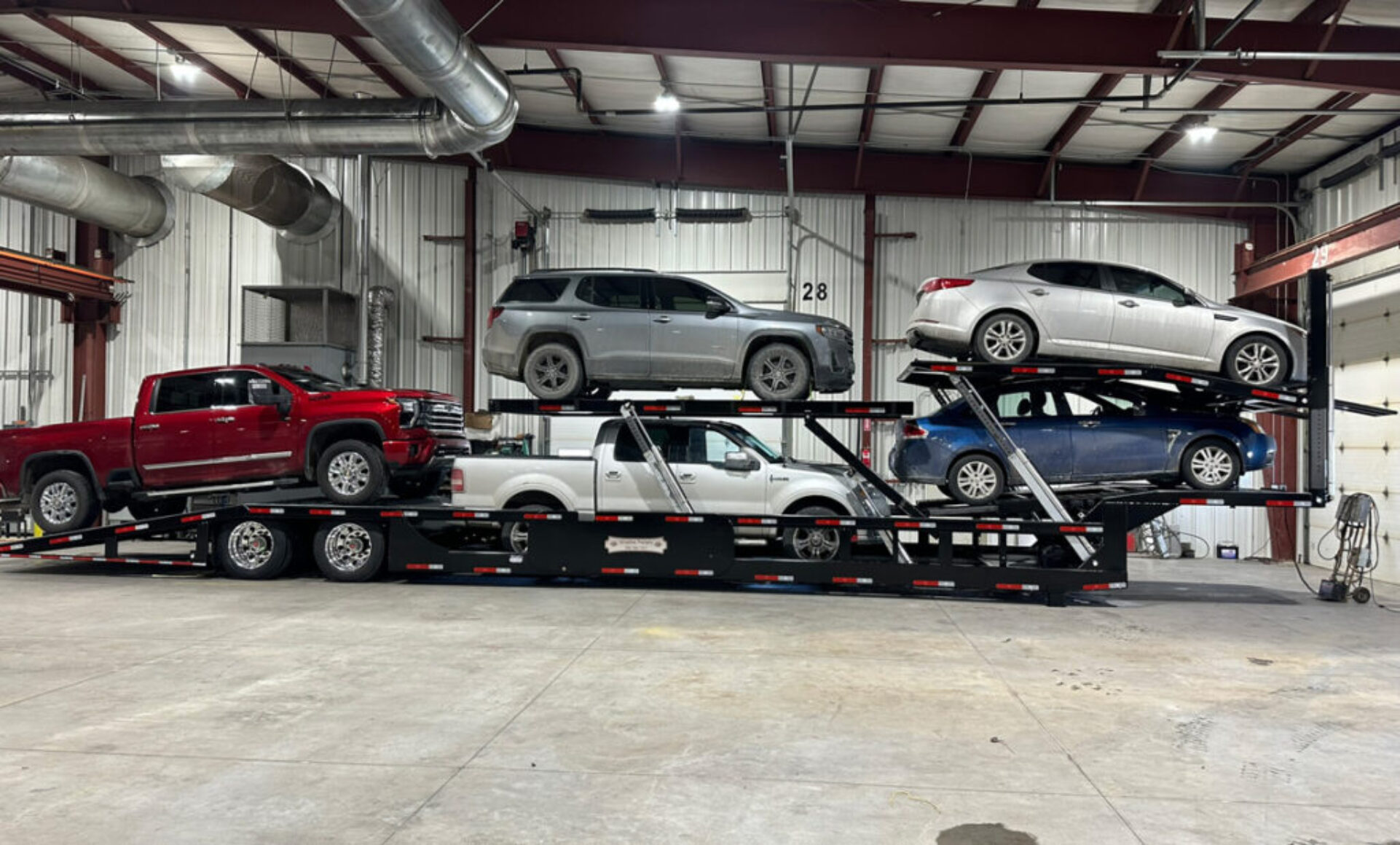

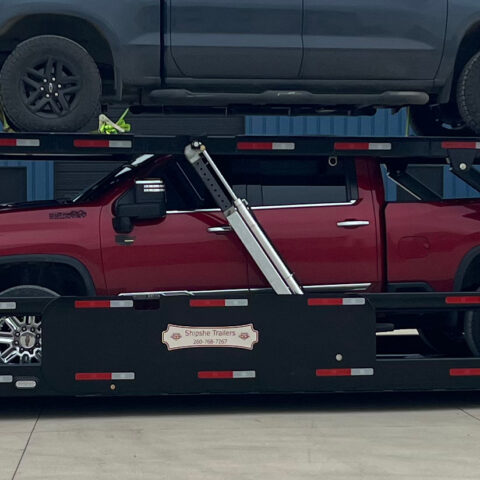

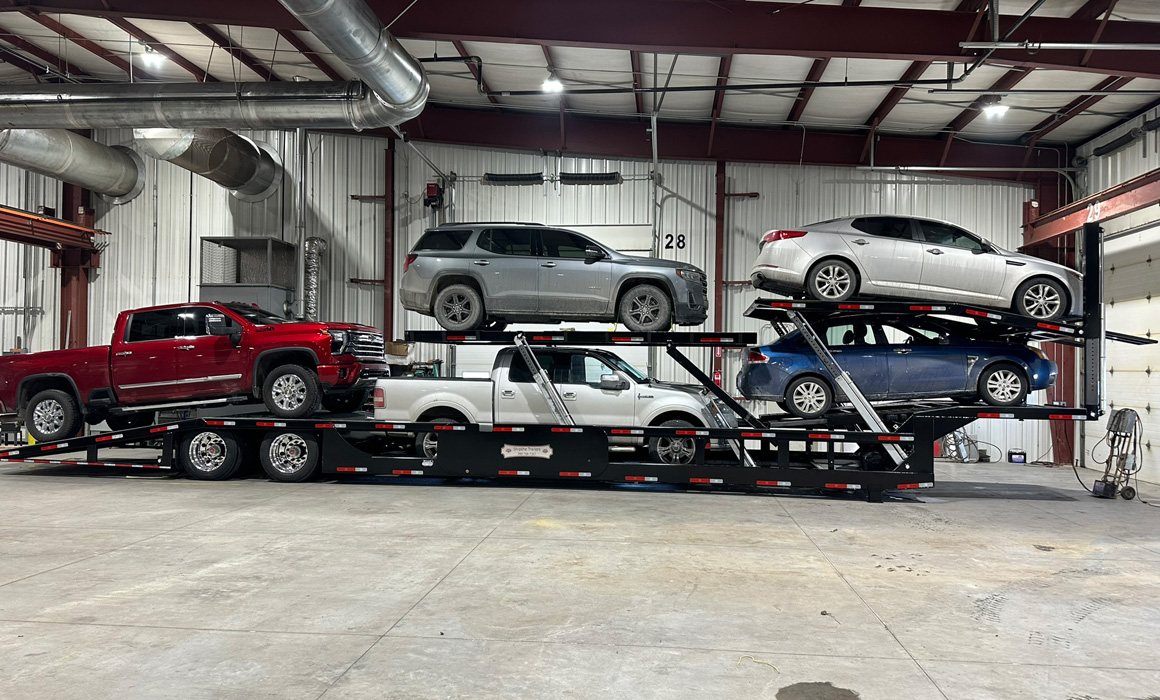

Truck Slot Package Our truck slot feature is expertly engineered to secure a full-size pickup in the trailer’s belly while allowing the upper lift to lower over the vehicle. This design delivers an additional 12–14 inches of clearance height, maximizing space and boosting hauling efficiency.
